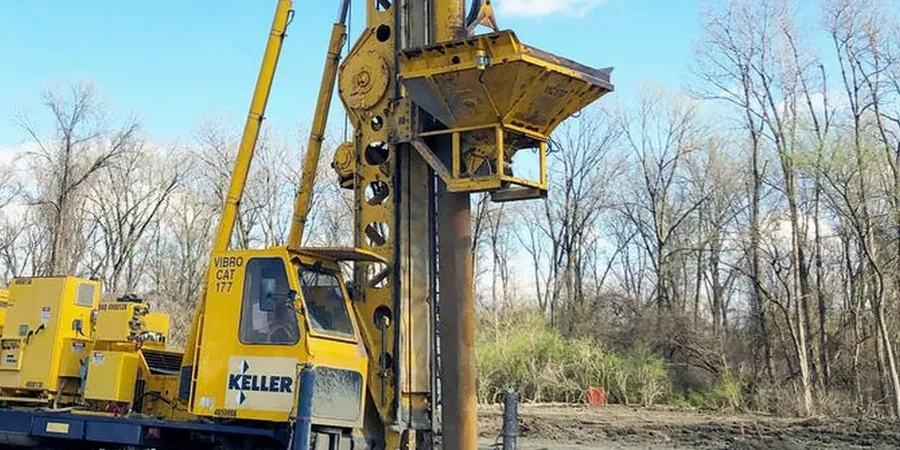

Vibrocompaction Design for Oklahoma City Soil Conditions

Q: What is the typical cost range for a vibrocompaction design package in Oklahoma City?

For a standard commercial site in the metro area, the vibrocompaction design — including desk study, trial program specification, and QA/QC protocol — typically falls between US$1,340 and US$4,990. The final figure depends on the treatment area size and the complexity of the subsurface profile.

Q: How do you determine if vibrocompaction is suitable for my Oklahoma City site?

We evaluate the grain size distribution curve from wash sieve analysis. The soil must have less than 15 percent passing the No. 200 sieve and a coefficient of uniformity suitable for vibratory rearrangement. Soils with higher fines content typically require alternative methods like stone columns.

Q: What depth of improvement can vibrocompaction achieve in the North Canadian River alluvium?

In the river corridor deposits, we routinely achieve densification to depths of 40 to 45 feet using standard bottom-feed vibrators. The actual achievable depth depends on the resistance of the underlying Garber-Wellington shale residuum, which can limit probe penetration.

Q: Does the IBC require special inspections for vibrocompacted ground in Oklahoma City?

Yes, Chapter 17 of the IBC 2024 mandates special inspections for ground improvement. Our design package includes the required statement of special inspections, observation frequency, and post-treatment verification testing that the Oklahoma City building department will require.

Oklahoma City's expansion from the 1889 Land Run into a sprawling metropolitan area of over 620 square miles has placed immense pressure on its underlying geology, particularly the Quaternary alluvial deposits along the North Canadian River. Many commercial and industrial developments now occupy land underlain by loose, poorly graded sands (SP) and low-plasticity silty sands (SM) that are highly susceptible to settlement. When structural loads exceed the tolerable bearing capacity of these native soils, vibrocompaction design becomes an essential ground improvement strategy. Our technical team evaluates the gradation envelope per ASTM D2487 to confirm suitability for deep vibratory densification, a method that has proven effective in the sandy lenses found at depths between 15 and 40 feet throughout the Oklahoma River corridor. A thorough grain size analysis often reveals the fines content that dictates whether vibrocompaction will achieve the specified relative density without excessive pore pressure buildup.

Effective vibrocompaction design in Oklahoma City hinges on distinguishing between true alluvial sands and residuum derived from the Garber-Wellington Formation, a nuance that directly impacts probe penetration and grid spacing.

Our service areas

Process and scope

The geotechnical contrast between the historic Bricktown district and the newer developments along the Kilpatrick Turnpike corridor illustrates how variable Oklahoma City's subsurface can be. Bricktown sits near the river's historic floodplain, where loose, saturated sands require careful vibrocompaction design to achieve a minimum relative density of 70 percent, while the northwestern quadrant often encounters cemented sands and shale residuum where vibratory methods must be calibrated differently. Our design process incorporates CPT correlations and SPT blow counts to map the spatial variability of the target stratum, defining probe spacing, vibration frequency, and duration for each treatment zone. For sites where the grain size distribution indicates borderline suitability, we often recommend integrating stone columns as a complementary technique to ensure uniform densification and vertical drainage, particularly in deposits with intermittent silt layers that could otherwise trap excess pore pressure and delay consolidation.

Vibrocompaction Design for Oklahoma City Soil Conditions — Technical reference — Oklahoma City

Local geotechnical context

A critical datum for Oklahoma City is the depth to groundwater, which often fluctuates between 10 and 25 feet below grade depending on seasonal recharge and proximity to the North Canadian River. Elevated water tables introduce the risk of transient liquefaction during vibratory densification, a phenomenon well-documented in the region's loose Holocene sands. Additionally, the metro area carries a moderate seismic hazard classification under IBC 2024, with design spectral response accelerations requiring that vibrocompacted sands achieve not just static stability but also resistance to cyclic mobility. Our design explicitly accounts for the energy dissipation characteristics of the treated mass, referencing case histories from Seed and Idriss to validate the anticipated increase in SPT N60 values. Failure to address the natural heterogeneity of the Garber-Wellington residuum — which can underlie the alluvial sands at shallow depths — may result in refusal during probe penetration or uneven densification, compromising the performance of shallow foundations.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.xyz

Applicable standards

ASTM D1586 Standard Test Method for Standard Penetration Test (SPT), ASTM D2487 Standard Practice for Classification of Soils, IBC 2024 - Chapter 18 Soils and Foundations, ASCE/SEI 7-22 Minimum Design Loads for Buildings

Technical parameters

Parameter	Typical value
Applicable Soil Types (ASTM D2487)	SP, SP-SM, SM with fines content < 15%
Typical Treatment Depth in OKC	15 to 45 ft below grade
Target Relative Density (Dr)	70% to 85% per project specification
Probe Spacing (Triangular Grid)	5 to 10 ft center-to-center
Vibrator Power	130 to 250 kW electric or hydraulic
Pre- and Post-Treatment SPT Verification	Minimum 1 boring per 2,500 sq ft of treated area

Common questions

What is the typical cost range for a vibrocompaction design package in Oklahoma City?

For a standard commercial site in the metro area, the vibrocompaction design — including desk study, trial program specification, and QA/QC protocol — typically falls between US$1,340 and US$4,990. The final figure depends on the treatment area size and the complexity of the subsurface profile.

How do you determine if vibrocompaction is suitable for my Oklahoma City site?

We evaluate the grain size distribution curve from wash sieve analysis. The soil must have less than 15 percent passing the No. 200 sieve and a coefficient of uniformity suitable for vibratory rearrangement. Soils with higher fines content typically require alternative methods like stone columns.

What depth of improvement can vibrocompaction achieve in the North Canadian River alluvium?

In the river corridor deposits, we routinely achieve densification to depths of 40 to 45 feet using standard bottom-feed vibrators. The actual achievable depth depends on the resistance of the underlying Garber-Wellington shale residuum, which can limit probe penetration.

Does the IBC require special inspections for vibrocompacted ground in Oklahoma City?

Yes, Chapter 17 of the IBC 2024 mandates special inspections for ground improvement. Our design package includes the required statement of special inspections, observation frequency, and post-treatment verification testing that the Oklahoma City building department will require.
